Michrome 20

Overview

The MIchrome 20 is a high-resolution large-area array camera that combines the advantages of high resolution and high sensitivity and is excellent for fluorescent imaging applications. The 1-inch large target surface covers the optimal area of the image plane, and with 20 megapixels, the MIchrome 20 captures detailed images



Live Stitching

The MIchrome 20 can generate large-sized mosaic images in a few seconds while moving the stage, which is smooth and easy!

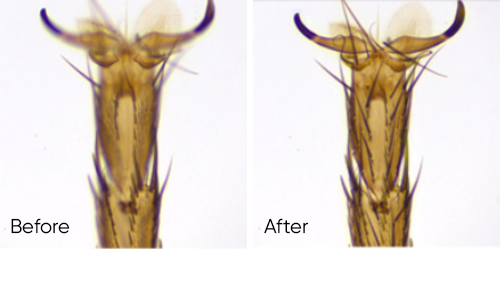

Live EDF

While turning the focus ring to image different depth-of-field points, the MIchrome 20 automatically generates clear, large depth-of-field images quickly, accurately and efficiently.

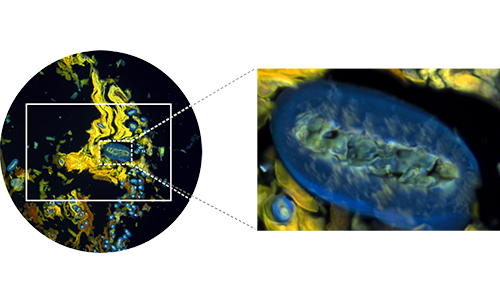

20MP for Capturing High-Resolution Images

The MIchrome 20 nearly 16mm diagonal diameter image sensor can cover the most uniform central area of the image plane. With a resolution of up to 20 megapixels, you can capture high-definition details of your samples in one shot.

Specification >

• Model:MIchrome 20
• Sensor Type:CMOS
• Sensor Model:SONY IMX183CQJ-J
• Color/Mono:Color
• Array Diagonal:15.86 mm
• Resolution:20MP, 5472(H) x 3648(V)
• Pixel Size:2.4 μm x 2.4 μm
• Effective Area:13.1mm x 8.8mm
• Shutter Mode:Rolling
• Frame Rate:15 fps @ 5472x3648
• Exposure Time:18μs-15s
• Binning:2x2, 3x3, 4x4
• Color Temperature:2000-15000K
• PC Software:Mosaic V2
• Picture Format:TIFF/JPG/PNG/DICOM
• Multiple Cameras:Supports 4 Cameras Simultaneously in SDK
• SDK:C/C++, C#, Directshow/Twain
• Optical Interface:Standard C Mount
• Bit Depth:16/8bit
• Camera Size:68mmx68mmx46mm
• Camera Weight:327g
• Data Interface:USB3.0
• Power:3W
• Operating Environment:Temperature：-10~45℃; Humidity: 10%~85%
• Operating System:Windows 7/10 (32 Bit/64 Bit)/Mac
• PC Configuration:CPU: Intel Core i5 or better(Quad or more Core), RAM: 8G or more
