FL 9BW



Overview

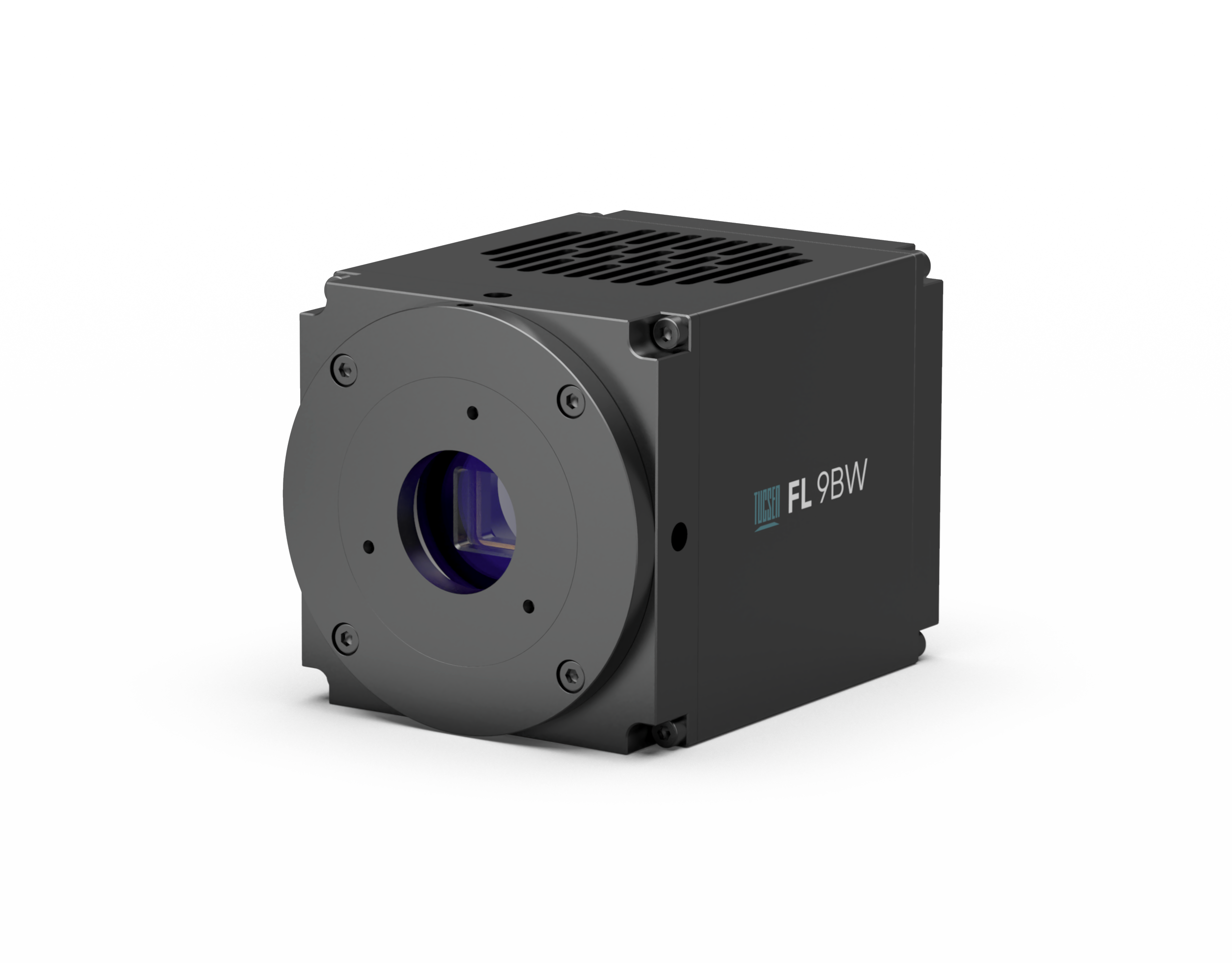

The FL 9BW is a cooled CMOS camera designed for long exposure imaging. It not only incorporates high sensitivity and low noise advantages from latest sensor technologies, but also leverages Tucsen’s many years experiences on cooling chamber design and advanced image processing, being able to capture clean and even images for up to 60 minutes exposure time.





•

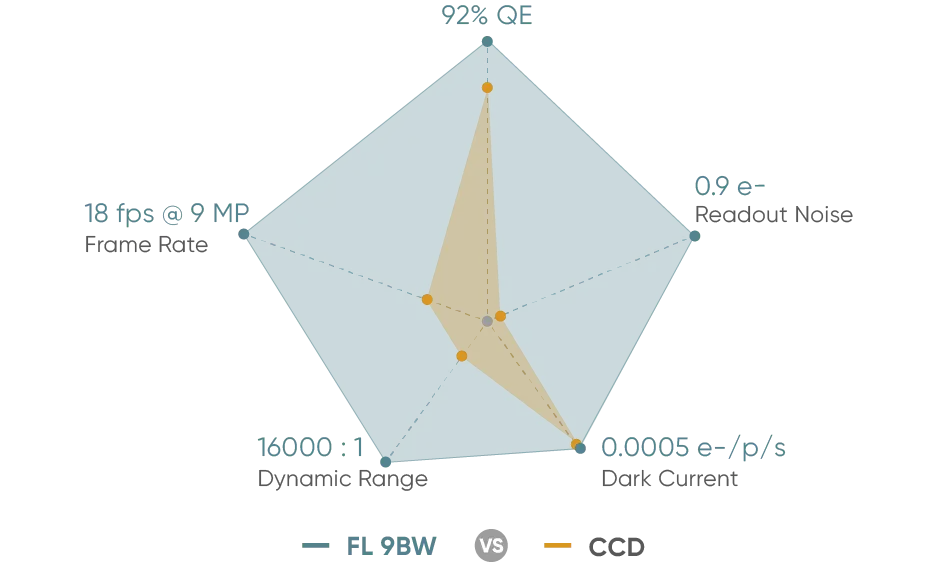

• ong Exposure Imaging



  Long Exposure Imaging



  Better Quantitative Capability




• Specification >
  • Model:FL 9BW
  • Sensor Type:BSI CMOS
  • Sensor Model:SONY IMX533CLK-D
  • Color/Mono:Mono
  • Array Diagonal:15.96 mm (1”)
  • Effective area:11.28 mm × 11.28 mm
  • Pixel Size:3.76 µm × 3.76 µm
  • Resolution:3000 × 3000, 9 MP
  • Peak QE:92 % @ 540 nm
  • Dark Current:< 0.0005 e-/p/s
  • Gain Mode:Gain 0 - HFWC, Gain 1 - Balance, Gain 2 - High Sensitivity 1, Gain 3 - High Sensitivity 2
  • Full well capacity:Gain 0：47 ke- @ bin1, binning > 180 ke- ;
    Gain 1：16 ke- @ bin1, binning > 64 ke- ;
    Gain 2：8 ke- @ bin1, 14 bit binning > 32 ke-;
    Gain 3：3ke- @ bin1, 14 bit binning > 12ke-
  • Readout noise (Standard):3.2 e- @ Gain 0, 1.2 e- @ Gain 1, 1.0 e- @ Gain 2, 0.95 e- @ Gain 3
  • Readout noise (LowNoise):2.5 e- @ Gain 0, 1.0 e- @ Gain 1, 0.9 e- @ Gain 2, 0.85 e- @ Gain 3
  • Frame Rate:19 fps @ Standard Mode, 12 fps @ Low Noise Mode
  • Shutter Mode:Rolling
  • Exposure Time:15 μs ~ 60 min
  • Image Processing:DDFC, DPC
  • ROI:Support
  • Binning:2，3，4，6，8，12，16，24
  • Cooling Method:Air
  • Cooling Temperature:Cooled to -25 °C @ Ambient temperature (22 °C)
  • Trigger Mode:Hardware, Software
  • Output Trigger Signals:Exposure start, Global, Readout end, High level, Low level
  • Trigger Interface:Hirose
  • SDK:C, C++, C#
  • Data Interface:USB 3.0
  • Software:Mosaic, SamplePro, LabVIEW, MATLAB, Micromanager
  • Optical Interface:C-Mount, Customizable
  • Bit Depth:14 bit, 16 bit
  • Power:12 V / 6 A
  • Power Consumption:≤ 40 W
  • Dimensions:76 mm x 76 mm x 98.5 mm
  • Camera Weight:835 g
  • Operating System:Windows / Linux
  • Operating Environment:Working: Temperature 0 ~ 40 °C , Humidity 10 ~ 85 %
    Storage: Temperature -10 ~ 60 °C , Humidity 0 ~ 85 %
• The FL 9BW integrates Sony's glow suppression technology and TUCSEN advanced image calibration technology to calibrate problems such as background glow and dead pixels, providing much cleaner background for quantitative analysis.

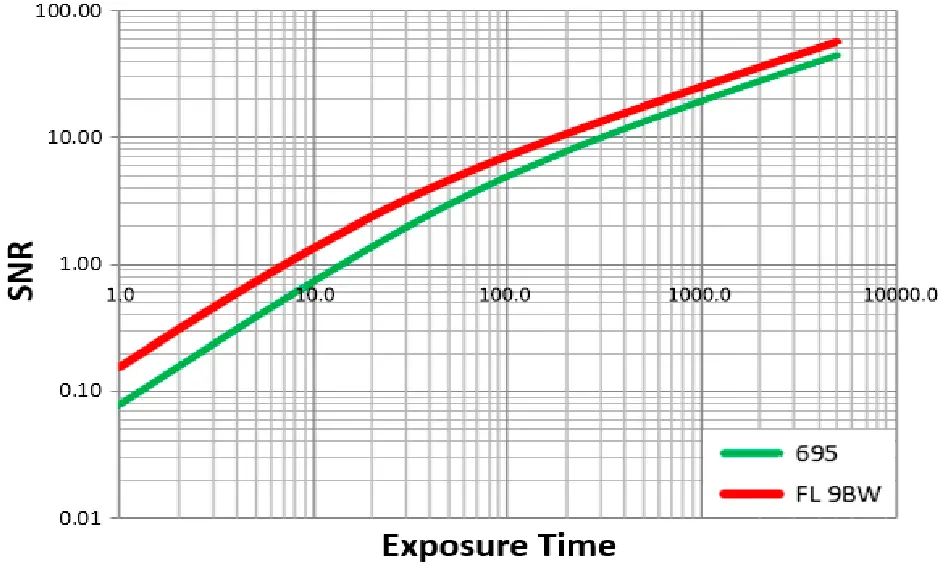

• The Dark current and the cooling depth are the key performance of long exposure imaging. The FL 9BW has the low dark current down to 0.0005 e- / p / s and the deep cooling depth down to -25℃ at ambient 22°C , which make it can acquire high SNR images within ~ 10 min, and has higher SNR in 60 min than the CCD.
