Michrome 6



Overview

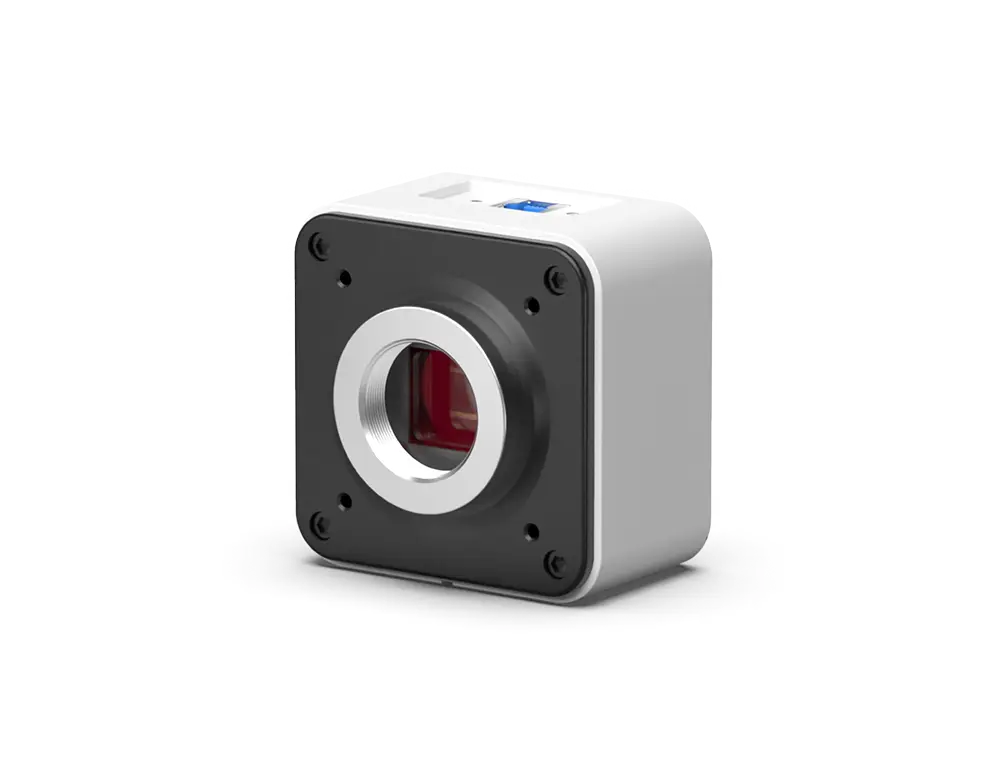

The MIchrome 6 is a 6MP color camera suitable for brightfield microscopic imaging applications. The camera has real-time image stitching, depth of field fusion and a USB 3.0 high-speed transmission interface, which can effectively improve user efficiency. The MIchrome 6 is the only choice for users looking for an economical camera



Live Stitching

The MIchrome 6 can generate large-sized mosaic images in a few seconds while moving the stage, which is smooth and easy!



Live EDF

While turning the focus ring to image different depth-of-field points, the MIchrome 6 automatically generates clear, large depth-of-field images quickly, accurately and efficiently.



6MP Resolution

6MP resolution is widely used in microscopy imaging applications, making the MIchrome 6 suitable for both biological and industrial applications.





Specification >

• Model:MIchrome 6
• Sensor Type:CMOS
• Sensor Model:SONY IMX178LQJ-C
• Color/Mono:Color
• Array Diagonal:8.92mm
• Resolution:6MP, 3072(H)x2048(V)
• Pixel Size:2.4 μm x 2.4 μm
• Effective Area:7.4mmx4.9mm
• Shutter Mode:Rolling
• Frame Rate:41 fps @ USB 3.0
• Exposure Time:11μs-12s
• Binning:2x2, 3x3, 4x4
• Color Temperature:2000-15000K
• PC Software:Mosaic V2
• Picture Format:TIFF/JPG/PNG/DICOM
• Multiple Cameras:Supports 4 Cameras Simultaneously in SDK
• SDK:C/C++, C#, Directshow/Twain
• Optical Interface:Standard C Mount
• Bit Depth:16/8bit
• Power:3W
• Operating Environment:Temperature：-10~45℃; Humidity：10%~85%
• Data Interface:USB3.0
• Dimensions:68mmx68mmx46mm
• Camera Weight:327g
• Operating System:Windows 7/10 (32 Bit/64 Bit)/Mac
• PC Configuration:CPU: Intel Core i5 or better(Quad or more Core), RAM: 8G or more,
