Michrome 16

Overview

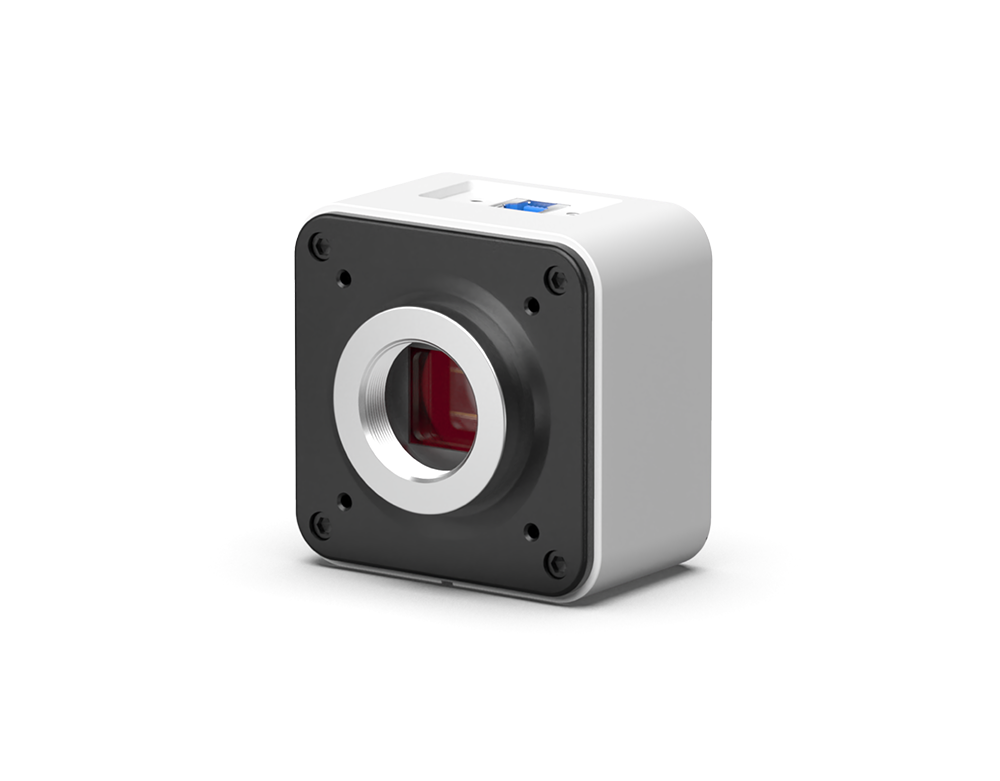

The MIchrome 16 is a 16-megapixel color camera that can run four cameras simultaneously using the SDK. It is suitable for open-field imaging applications providing true colors and richer imaging details, helping users capture clear and high-quality images in brightfield.



Live Stitching

The MIchrome 16 can generate large-sized mosaic images in a few seconds while moving the stage, which is smooth and easy!



Live EDF

While turning the focus ring to image different depth-of-field points, the MIchrome 16 automatically generates clear, large depth-of-field images quickly, accurately and efficiently.



Wide Range Color Temperature Adjustment

The MIchrome 16 has an integrated 1800-10000K color temperature adjustment, which significantly improves the white balance, delivering incredible color fidelity in the original image, eliminating the need for any post-processing.



Specification >

• Model:MIchrome 16
• Sensor Type:CMOS
• Sensor Model:SONY IMX206CQC
• Color/Mono:Color
• Array Diagonal:7.77 mm
• Resolution:16MP, 4608(H)x3456(V)
• Pixel Size:1.34 μm x 1.34 μm
• Effective Area:6.2 mm x 4.6 mm
• Shutter Mode:Rolling
• Frame Rate:12 fps @ 4608x3456
• Exposure Time:22μs-26s
• Binning:2x2, 3x3, 4x4
• Color Temperature:2000-15000K
• PC Software:Mosaic V2
• Picture Format:TIFF/JPG/PNG/DICOM
• Multiple Cameras:Supports 4 Cameras Simultaneously in SDK
• SDK:C/C++, C#, Directshow/Twain
• Optical Interface:Standard C Mount
• Bit Depth:16/8bit
• Power:3W
• Dimensions:68mmx68mmx46mm
• Data Interface:USB3.0
• Operating Environment:Temperature：-10~45℃; Humidity：10%~85%
• Camera Weight:327g
• Operating System:Windows 7/10 (32 Bit/64 Bit)/Mac
• PC Configuration:CPU: Intel Core i5 or better(Quad or more Core), RAM: 8G or more,
