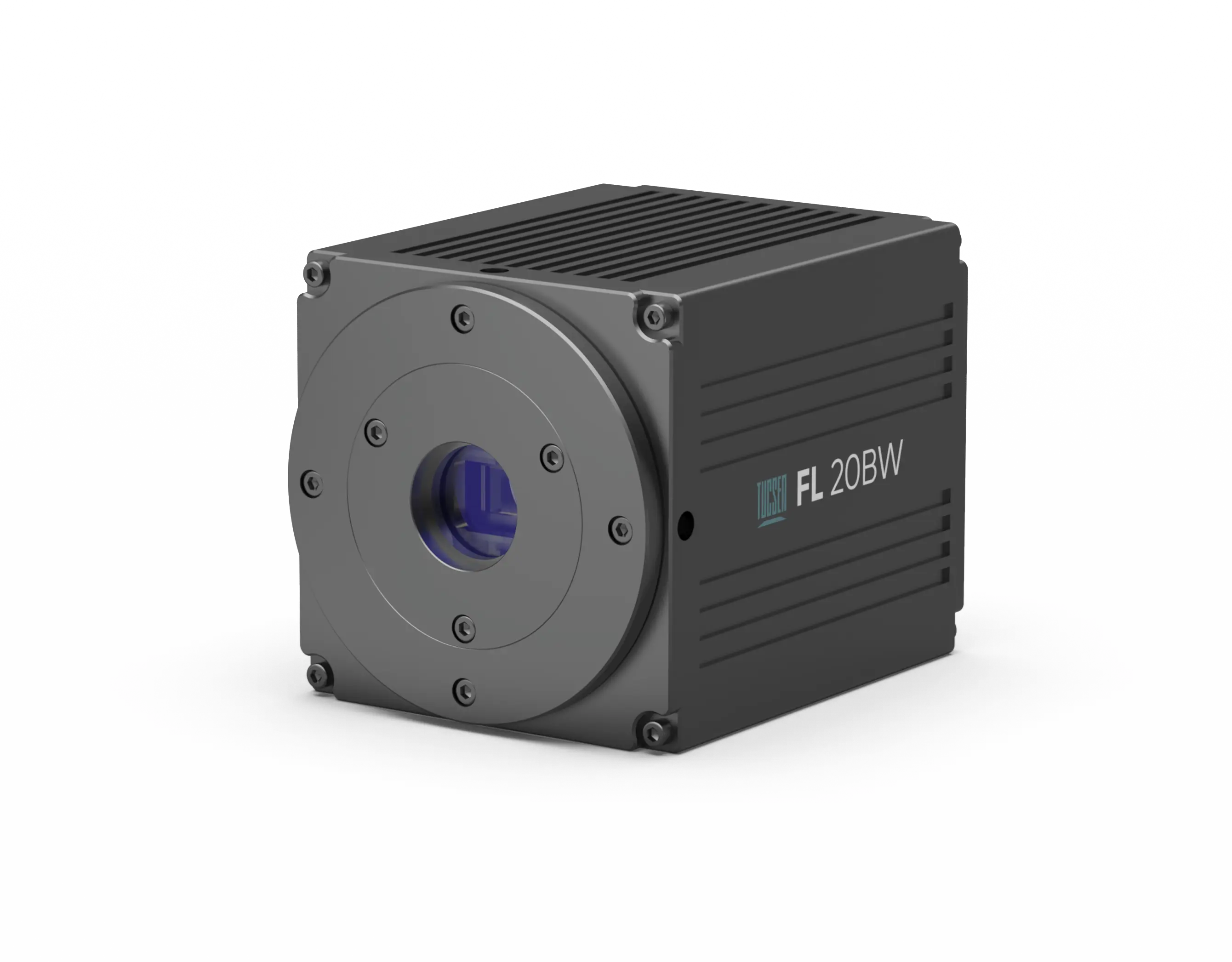

FL 20 BW



OVERVIEW

The FL 20BW is a Scientific CMOS camera designed for documentation or system integration. Delivering 20 million pixels with 84% QE it is the perfect camera for systems operating with low NA/low magnification objectives.



20MP for Capturing High-Resolution Images

The FL 20BW's nearly 16mm diagonal diameter image sensor can cover the most uniform central area of the image plane. With a resolution of up to 20 megapixels, you can capture high-definition details of your samples in one shot.





Advanced Cooling Technology Reduces Dark Current Down to 0.001e-/pixel/s

Based on Tucsen's professional cooling technology for sCMOS cameras, the FL 20BW can achieve a dark current level as low as 0.001e/pixel/s, significantly reducing hot pixels during long exposure times.



Excellent Comprehensive Performance

The FL 20BW has excellent overall performance, achieving the same low levels of dark current and cost as a CCD camera while maintaining the low readout noise and faster speeds of a CMOS camera.





Specification >



• Model:FL 20BW
• Sensor Type:CMOS
• Sensor Model:SONY IMX183CLK-J
• Color/Mono:Mono
• Array Diagonal:15.86mm
• Resolution:20MP, 5472(H) x 3648(V)
• Pixel Size:2.4μm x 2.4μm
• Effective Area:13.1mm x 8.8mm
• Full-Well Capacity:16ke-
• Frame Rate:8fps@USB3.0
• Peak QE:84%@495nm
• Dark Current:0.001e-/p/s
• Readout Noise:0.6e-
• DSNU:0.2e-
• PRNU:0.8%
• Shutter Mode:Rolling
• Exposure Time:16μs-60min
• Binning:2x2, 3x3, 4x4, 8x8
• Color Temperature:——
• PC Software:Mosaic V2
• Picture Format:TIFF/JPG/PNG/DICOM
• Data Interface:USB3.0
• Multiple Cameras:Supports 4 Cameras Simultaneously in SDK
• SDK:C/C++, C#, Directshow/Twain
• Optical Interface:Standard C Mount
• Bit Depth:16/8bit
• Power:12V
• Operating Environment:Temperature: 0~40℃
  Humidity: 10%~85%
• Dimensions:85mm x 85mm x 112mm
• Camera Weight:980g
• Operating System:Windows 7/10(32 Bit/64 Bit)/Mac
• PC Configuration:CPU: Intel Core i5 or better(Quad or more Core), RAM: 8G or more



Applications >





Fluorescence Imaging



qPCR



 dPCR

Chemiluminiscence
