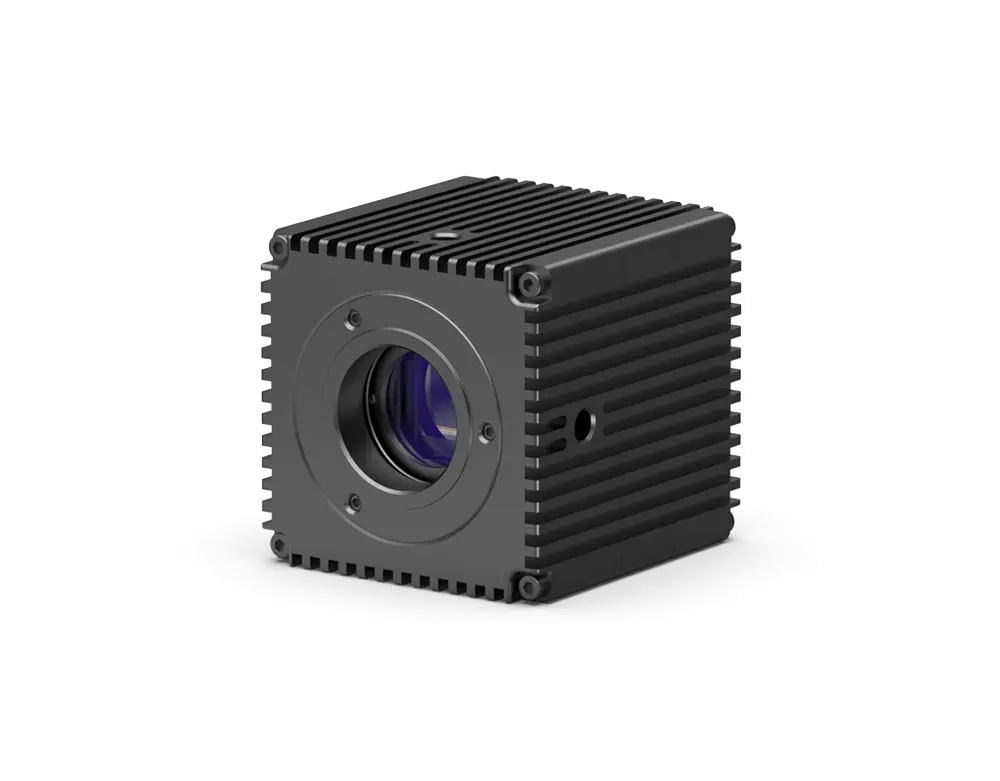

Dhyana 201D



OVERVIEW

The Dhyana 201D is the sCMOS answer for system integrators who seek sCMOS performance but want to preserve their instrument cogs/cost. Built in a small package using a front illuminated 6.5 micron pixel sensor, the camera delivers what most systems need while being the most cost-effective compared to its contemporaries



Designed for Integration

As a specialist OEM manufacturer, we understand the challenges of integrating cameras into other hardware. Our experience and standard for excellence in delivery, reliability and support can help bring better products to market, faster.







Compact Design

Our cameras are cleverly designed inside and out to make integration easier. From the casing to the software, we've optimised our design to allow yours to be as space-efficient and cost-effective as possible.



72% Peak QE

The Dhyana 201D adopts front-illuminated sCMOS technology with a peak quantum efficiency of 72% and a hardware 2X2 binning function, which means it has superior sensitivity for low-light imaging.







Specification >

• Model:Dhyana 201D
• Sensor Type:FSI sCMOS
• Sensor Model:Gpixel GSENSE2011
• Color/Mono:Mono
• Array Diagonal :15.3mm
• Resolution:2MP, 2048(H) x 1152(V)
• Pixel Size:6.5μm x 6.5μm
• Effective Area:13.3mm x 7.5mm
• Full-Well Capacity:Typical: 45ke-
• Frame Rate:70fps(16bit), 80fps(8bit)

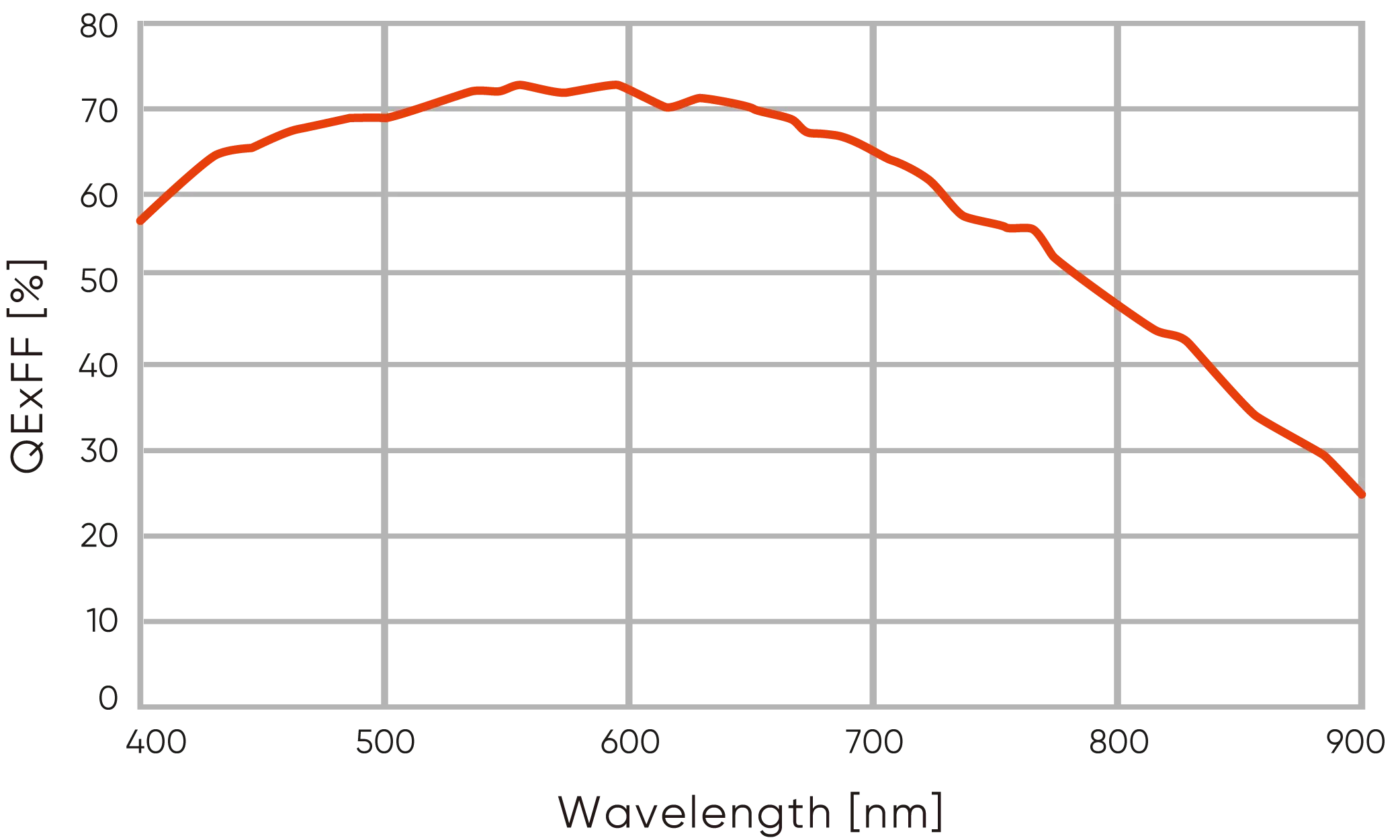

• Peak QE:72%@595nm
• Readout Noise:2.1e- (Median)
• Shutter Type:Rolling
• Exposure Time:10μs-10s
• Binning:2x2，4x4
• ROI:Support
• Trigger Mode:Hardware & Software
• Output Trigger Signals:Exposure, Readout, High level, Low level
• Trigger Interface:HIROSE
• Data Bit Depth:16bit & 8bit
• Optical Interface:M42/C-Mount
• Data Interface:USB3.0
• Power Supply:USB3.0
• Power Consumption:< 4W
• Dimensions :56mm x 56mm x 61.7mm
• Weight:305g
• Software:Mosaic/LabVIEW/Matlab/Micromanager/Samplepro
• SDK:Support
• Operating System:Windows/Linux
• Operating Environment:Temperature: 0~40°C/Humidity: 10~85%

Applications >

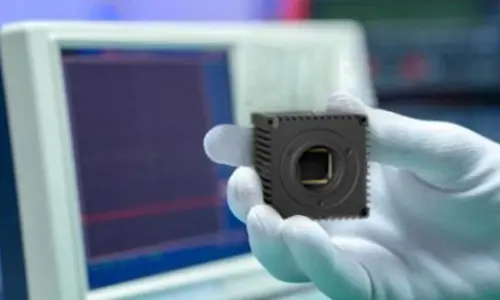

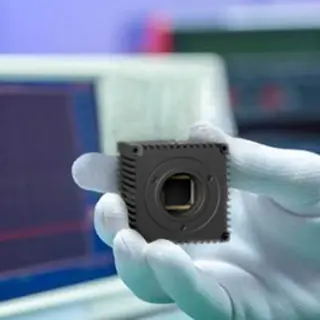

Instrument Componet

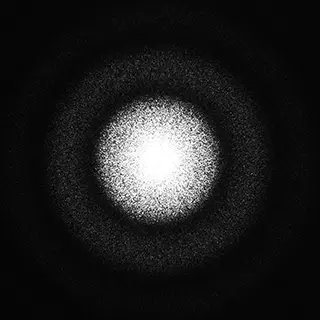

Laser Spot Analysis

Diffractive Phase Interferometry Imaging - Blood

Spot Analysis
