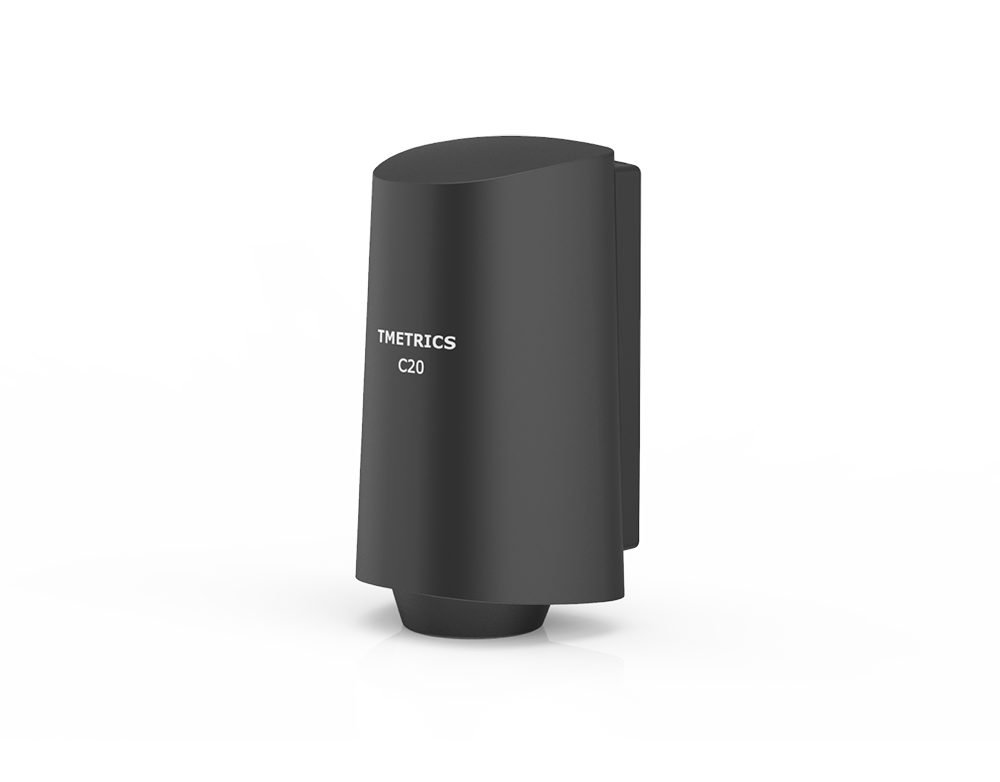

TMETRICS C20

OVERVIEW

The C20 camera has both features of high integration and flexibility, which can be directly equipped with metallographic, stereo microscopes and other reflective microscopes with no computer required. Using its 3D and EDF core technologies, it has greater efficiency for microscopic research and inspections.

Easy to Use

The C20 smart camera is a four-in-one system that integrates the functions of a camera, a software motorized focus platform and a computer host. It can be flexibly matched with reflective optical systems such as stereo microscopes and metallographic microscopes.

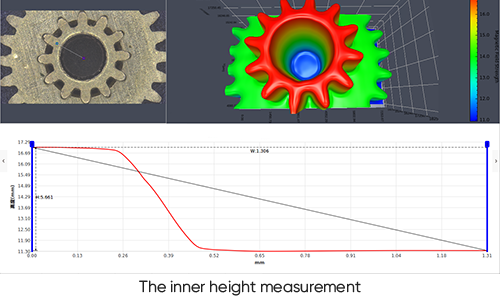

Micron-scale 3D Measurement

You can mearure any position and record data by the C20 3D fonction. The higher magnification objective lens, the higher precision data: with the metallographic microscope of 10 times objective lens, the C20 Z-axis measurement accuracy and repeatability is±2 micron and±1 micron.

Live EDF for Clear Observation

Ordinary microscopes cannot focus on multiple layers at the same time under high magnification. The C20 inner smart EDF algorithm can help solve these problems, obtain all the features of the sample at high magnifications and capture a clear and correct full-frame focusing image.
